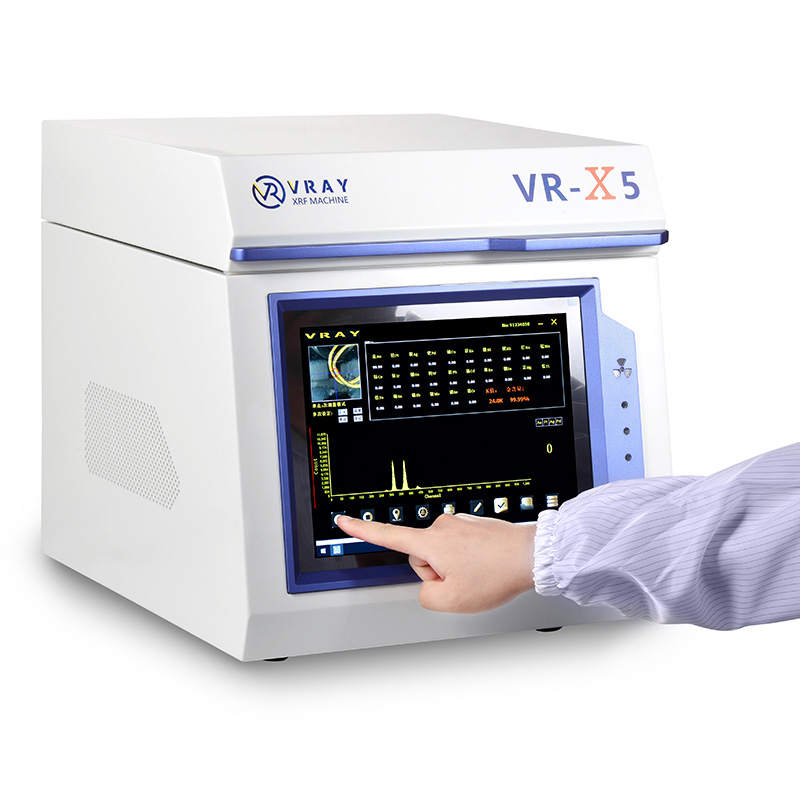

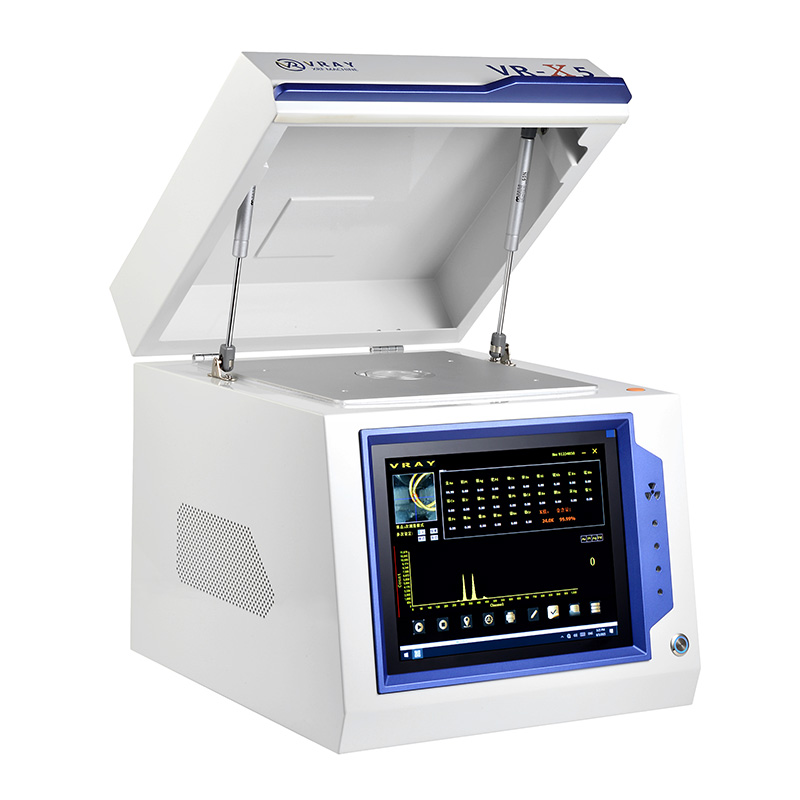

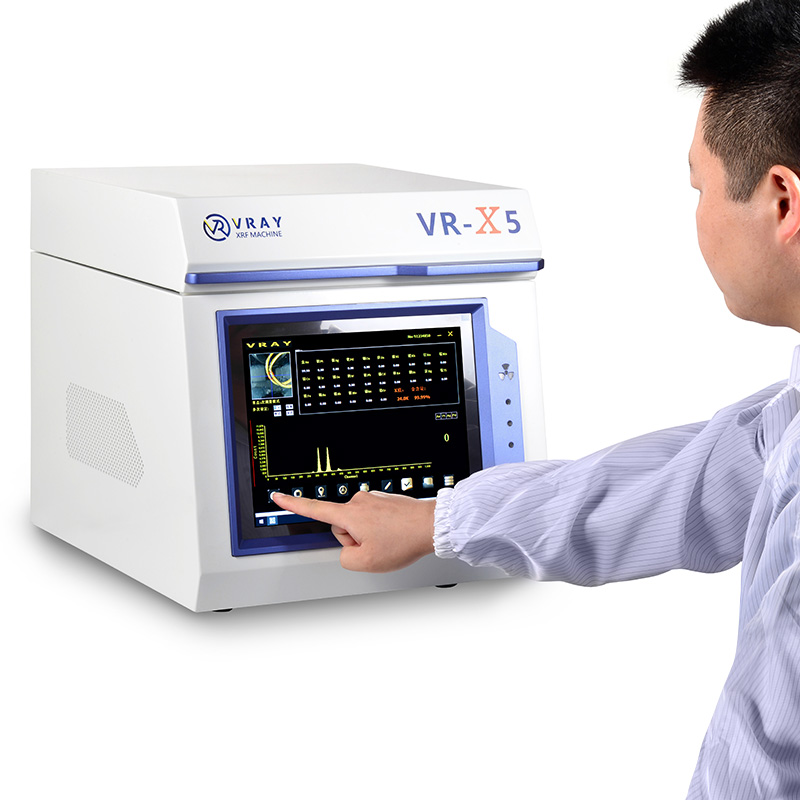

Discover VR-X5: Your Ultimate Gold & Precious Metal Analyzer!
This video reveals how the VR-X5 XRF Gold Analyzer swiftly and accurately tests up to 20 elements in precious metals, enhancing your jewelry, trading, or quality control business. See its features and elevate your testing!
At VRAY, we are a professional gold trading tools supplier with 17 years of experience, specializing in advanced XRF equipment. Our comprehensive range of gold tester solutions includes versatile XRF analyzer, gold spectrometer, precious metals analyzer, and jewelry tester, all designed for accurate gold purity testing. We offer both robust desktop models, such as the high-performance VR-T7 (priced around $20,000-$22,000) and VR-T6 (around $18,000-$19,000), which feature advanced SDD/liquid powder detectors, precise 0.01% accuracy for 99.99 gold, 50W micro-focused X-ray tubes, and dedicated safety systems. The VR-T7 includes a high-resolution 5-million-pixel camera, while the VR-T6 boasts an inbuilt computer with an 11.6" Windows 11 touchscreen. Additionally, we provide convenient handheld options including models like the VR-H5, VR-M5, VR-S6, VR-S7, VR-X3, and VR-X5. We pride ourselves on offering flexible customization options to meet your specific testing requirements, ensuring our XRF machines are the perfect fit for jewelry manufacturing, precious metal trading, and quality control. With competitive factory prices across our diverse range, VRAY delivers high-quality solutions for all your precious metal testing needs.
1.Jewelry Stores / Gold Retail ChainsUse Case
Solves:1.Quickly distinguishes genuine or fake items to avoid losses 2.Automatically identifies karat levels (e.g., 18K, 22K) to support sales 3.Builds customer trust by providing instant test results | 2.Gold Recycling / Pawnshops / Secondhand Precious MetalsUse Case
Solves:1.Accurately determines the purity of gold,silver and other precious metal 2.Offers non-destructive testing, improving customer acceptance. 3.Generates printable reports for professional and trustworthy service |
3.Jewelry Manufacturers / Precious Metal FactoriesUse Case
Solves:1.Ensures purchased materials (gold powder, alloy) meet purity standards 2.Controls metal composition during production to avoid inconsistencies 3.Optimizes alloy ratios for better quality and consistency | 4.Third-Party Labs / Certification AuthoritiesUse Case
Solves:1.Enables standardized, high-precision elemental analysis 2.Supports data export to Wins systems for archiving/reporting 3.Expands to multi-element testing, suitable for some non-ferrous metals too |

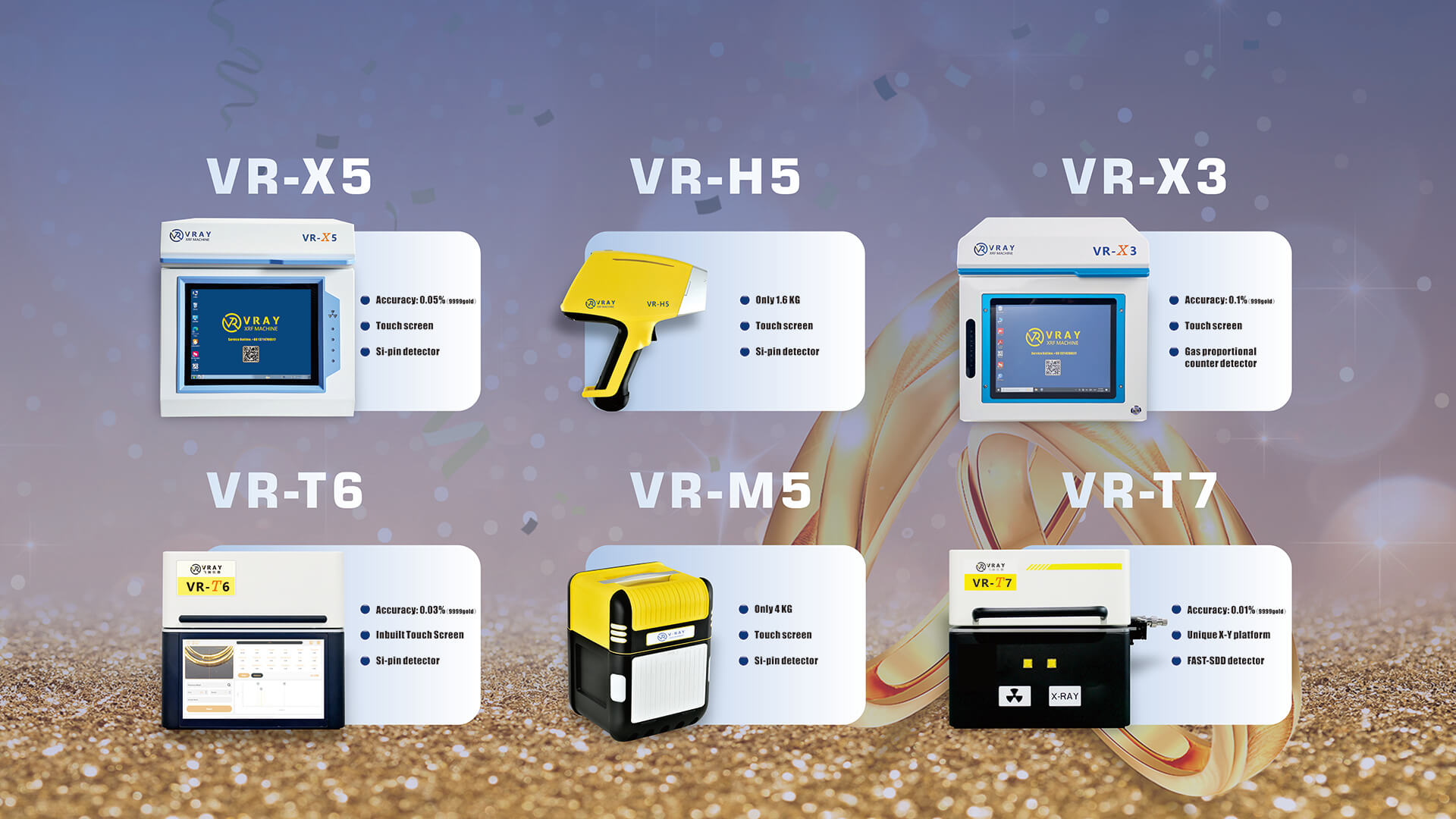

XRF Analyzers made by VRAY, including desktop models like VR-T7 and VR-T6, offer robust features and components for precise gold testing. Both utilize a 50W micro-focused X-ray tube and SDD/liquid powder detectors, achieving 0.01% accuracy. Common components include a 200x200x200mm chamber, 30kg net weight, and 30s test time. Safety is ensured by dedicated heat dissipation. Unique elements are VR-T7's 1.5mm collimator, manual XY platform, and 5MP camera with 40x-150x magnification. VR-T6 features a 0.8mm collimator and an 11.6" Windows 11 touchscreen with an inbuilt computer, highlighting VRAY's commitment to quality and precise analysis.
Detailed informations you can click all XRF analyzers to learn more!
Following is the guide to XRF gold tester operation:
Power on the machine and open the software.
Preheat the instrument for 10 minutes.
Calibrate: Place the calibration sample for instrument calibration.

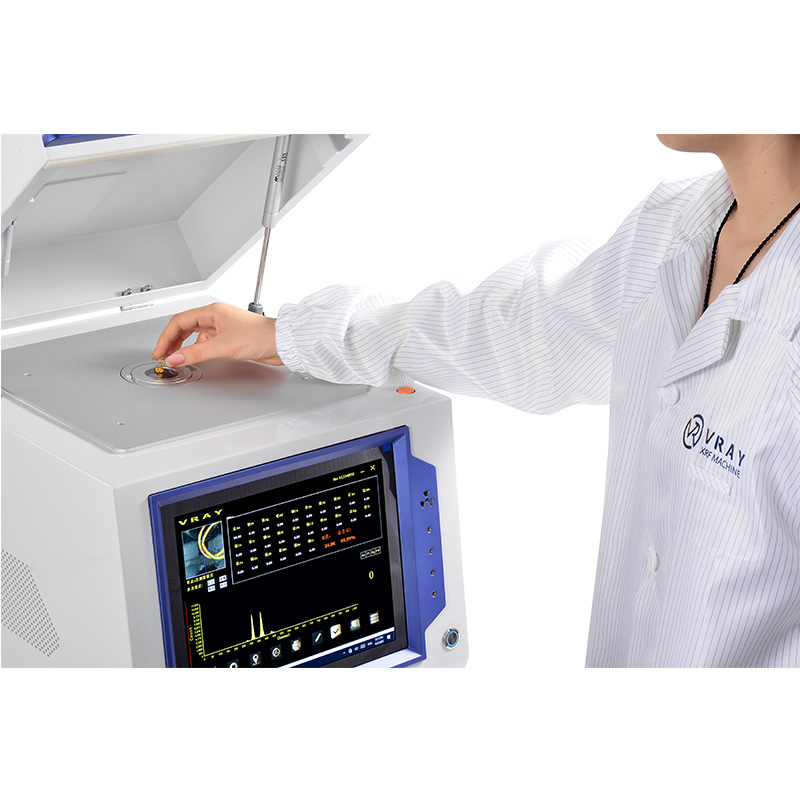

After calibration, place the sample in the detection area.
Close the machine cover and press the "Start" button to test.
Wait for the result. Generally, the preliminary analysis result will be displayed in 5 seconds, and the complete analysis result will be available in 30 seconds.
Print the report: When the test is completed, select the "Print" icon. You can choose to print an A4 report or use a Bluetooth thermal printer. Optionally, you can also save the report directly without printing it immediately.
For a more intuitive understanding of the usage process, please watch our XRF gold tester video tutorial.
VRAY's gold testers, within a price range of approximately $18,000 to $22,000. The pricing of gold testers is primarily influenced by their specific configuration factors:
Detector Type and Origin: The quality and origin of the detector, such as the customized SDD detector from USA mentioned for VR-T6, can impact cost.
Collimator Size: Differences in collimator size (e.g., 1.5mm for VR-T7 versus 0.8mm for VR-T6) suggest varying levels of precision or application focus, affecting the price.
Integrated Imaging and Optics: Features like a high-resolution camera and magnification capabilities (e.g., 5-million-pixel camera and 40x-150x magnification on the VR-T7) contribute to a higher price point.
Built-in Computing and User Interface: The inclusion of advanced components like an i5-1005G7 processor, Windows 11 operating system, and an 11.6" touchscreen (as seen in the VR-T6) influences the overall cost.
Overall Feature Set and Performance: The combination of all these components and additional capabilities, like a manual sample XY platform, define the model's performance tier and, consequently, its price.
For more detailed pricing information, please directly contact VRAY's expert team or browse our XRF analyzer price page.
| Customer Type | Key Needs | Core Solutions |
|---|---|---|
| 1. Jewelry Store Owners / Retailers | Authenticate gold, verify karat, build customer trust | Detects fake vs real instantly, auto-identifies karat, prints test reports |
| 2. Gold Recyclers / Pawnshops | Accurate pricing, avoid loss, increase deal success | Measures gold/silver %, non-destructive testing, exportable reports |
| 3. Jewelry Manufacturers / Factories | Material quality control, alloy optimization, QC | Tests raw materials, verifies alloy formula, supports batch testing |
| 4. Coin Collectors / Antique Dealers | Verify authenticity, detect fakes, preserve item value | Analyzes gold/silver content, detects plated/counterfeit items, no damage testing |
| 5. Testing Labs / Certification Bodies | Professional-grade testing, multi-element detection, reports | High precision analysis, complies with standards, generates PDF/Excel reports |
At the Hong Kong Jewellery Fair, VRAY helped OKKY JEWELRY. Facing needs for accurate, portable gold/silver testing, they adopted our VR-M5 Gold Analyzer. This portable device accurately detects 22 precious metals, boosting efficiency and eliminating external labs. It saves time/costs, ensures purity, and enhances market recognition for OKKY JEWELRY.
At the Hong Kong Jewellery Fair, VRAY assisted PRECIOUS Asher Trading Corp., who sought a portable, accurate solution for testing heavy gold plates and bullion. We recommended the handheld VR-H5 Gold Analyzer. This device quickly detects 22 precious metals, enhancing inspection efficiency, guaranteeing purity, and preventing financial losses for PRECIOUS Asher.
To learn more you can click all gold tester cases.
When purchasing a gold testing machine, you should focus on:
Detection range of elements：Does it support common precious metal elements such as Au, Ag, Pt, Pd, Rh, Cu, Zn, Ni (and their alloying elements).
Accuracy/Resolution (Detection sensitivity)：It is generally expressed in ppm, or an error of ±0.01%. The lower the resolution, the higher the sensitivity. Preferred SDD detector.
Test speed: The result is generally available within 30 to 60 seconds. The faster the speed, the more suitable it is for high-frequency use.
X-ray tube power: The common range is 4W to 50W. The higher the power, the stronger the penetration ability and speed, and the more comprehensive the test, but the price and energy consumption also increase.
Protection and safety certification: Whether there is X-ray safety shielding, interlocking of protective doors, and passing the radiation license certification, etc.
Brand and After-sales Service: Is there local maintenance, on-site service, training support and warranty period (suggested to be one year).
To extend gold tester life & precision, follow these tips:
Wipe the outer shell with a clean soft cloth or lint-free cloth every day to prevent dust accumulation.
Before each use, check whether there are any foreign objects or contamination in the test window and keep it clean and transparent.
Clean fans and vents regularly to prevent blockage and overheating.
Keep room temperature between 15-30°C and humidity below 70%, avoiding moisture or direct sunlight.
Use a voltage stabilizer or UPS to prevent unstable voltage from damaging components
Avoid prolonged continuous high-load use and turn off the cooling regularly.
For optimal operation and safety, always preheat and calibrate the instrument strictly daily. Ensure the protective door is closed before testing to prevent X-ray leakage. It is recommended to use a regulated power supply or UPS to avoid damage from voltage fluctuations. Keep the working environment dry, clean, and well-ventilated, avoiding high temperature and humidity. Crucially, always follow the operation manual and manufacturer's training, refraining from unauthorized parameter modifications.
Improper operations can pose significant risks. Starting a test with the protective door open can cause X-ray leakage and radiation damage. Forcibly cutting power or frequently turning the machine on and off can damage the X-ray tube, high-voltage module, or hard disk, leading to system crashes. Operating in a humid, hot, or dusty environment may cause overheating, mainboard dampness, or detector malfunction/short-circuit. Unauthorized modification of software parameters or calibration data can distort results, potentially requiring factory recalibration. Touching the detector window with sharp objects or fingers will damage the detector film, incurring extremely high maintenance costs. Lastly, moving the sample or opening the door during a test causes sample position shifts, leading to test failure and X-ray exposure.
If you want to purchase the best XRF analyzer, finding an experienced and technically proficient gold testing machine manufacturer is crucial. Special attention should be paid to the supplier's technical support and emergency issue handling. Below are VRAY's technical support and emergency/contingency issue handling solutions:
|
|
|
|
|
1.Various problems occurred during the use of the software (such as the software being unusable, software updates and upgrades). solution:
2.Problems occurred during the use of hardware (such as damage to the X-ray tube, detector failure, abnormal high-voltage power module, and failure of the protective door sensor) solution:
|
|
Our VRAY's gold testing instruments can detect 74 kinds of precious metal elements such as gold, silver, copper, palladium and rhodium, with a detection range of K-U. It is suitable for testing karat gold, platinum jewelry, coins, and alloys.
Our gold tester uses high-precision XRF (X-ray fluorescence) technology with typical accuracy within ±0.01% to ±0.1%. The accuracy varies with different machine configurations.Regular calibration ensures long-term stability and accuracy.
No. This is a non-destructive testing device. The sample remains intact and can be tested multiple times without any damage.
Our instruments displays the preliminary analysis data in about 3 seconds and completes the sample analysis in 30 seconds.
Yes. Most models come with 1 year warranty, along with lifetime technical support. Services may include remote assistance, on-site maintenance, and spare unit replacements.
The interface is user-friendly and available in Chinese/English. It uses one-click testing. Basic training (about half or 1 hour) is enough for a non-technical user to operate it confidently.
Yes. Reports can be generated in PDF or Excel formats and printed via built-in or external printers. Reports include metal composition, percentages, and optional customer information.
Weekly calibration is recommended to ensure accuracy. We usually provides 1–3 standard reference samples for calibration.
It’s very easy to use. The system offers a Chinese/English interface with graphical guidance and one-click testing. Most users can get started after 30 minutes of basic training.
Yes, as long as the device is calibrated regularly and used correctly, it provides highly accurate and stable results. Typical deviation is within ±0.1%. Daily calibration with a standard sample is recommended.
Yes. The system automatically calculates and displays K-values such as “Au 75% = 18K.” It also provides a full breakdown of all metal percentages.
Yes, to a certain extent. The device can identify differences between surface plating and solid gold based on X-ray signals, and will alert you to abnormal structures.
Yes. The tester comes with a multi-functional sample holder and positioning aids to help align small items like earrings, tiny scraps, and rings.
It is safe when used properly. The device features X-ray shielding and a safety interlock door system. Radiation is fully contained during operation and meets international safety standards.
Yes. The system can generate PDF or Excel reports with your logo, customer name, sample ID, and date.
Yes. All results are automatically saved locally and can be exported via USB. The software also supports searching and printing historical data.
Our XRF analyzer machine is manufactured for stability and requires the least maintenance. In case of any problem, we offer remote diagnosis, on-site repair and backup unit support.
What did our happy clients say?

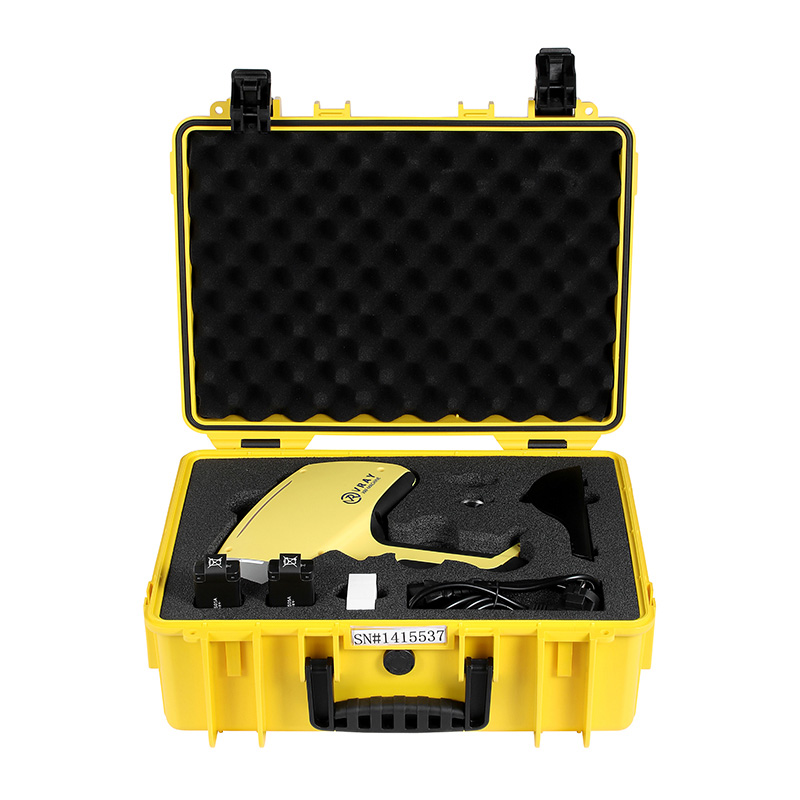

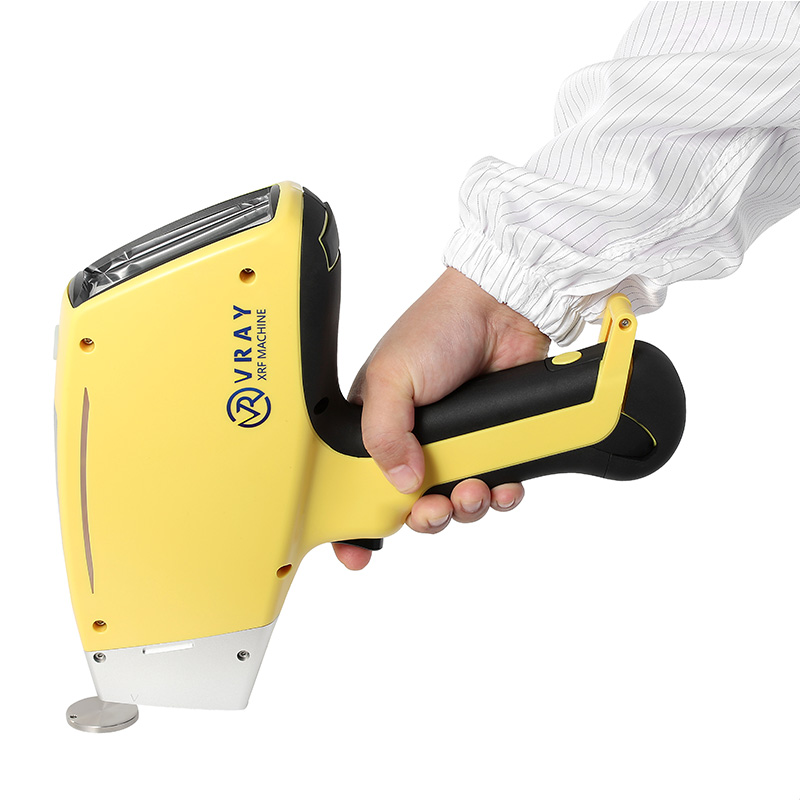

Just bought the VR-H5 handheld gold tester! This XRF analyzer is so easy to use, with its gold testing machine instantly detecting 22 metals in 20s. Super accurate & quality. Highly recommend VRAY!

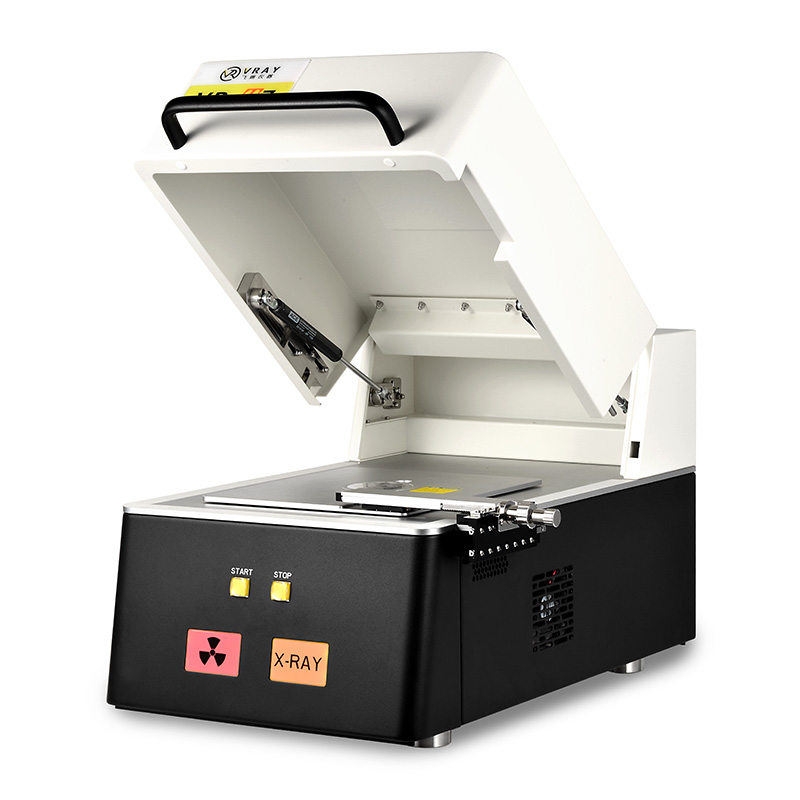

Recently upgraded to the VR-T7 gold tester. This XRF analyzer boasts 0.01% accuracy, a 5MP camera, and 1.5mm collimator. An excellent gold testing machine that's precise and easy to use. VRAY is top-tier!
