Watch the video below to find the best XRF analyzer you need by VRAY!
At VRAY, we understand that different customers have diverse needs for XRF analyzers. That's why we're proud to offer a range of top-tier products, ensuring you can find the "best" solution for your specific application. Among our product line, the VR-T7, VR-H5, and VR-M5 stand out as our most exceptional XRF technology achievements, thanks to their outstanding performance and unique advantages. They represent our capability to meet various demands, including desktop laboratory, handheld field, and portable mobile testing scenarios.

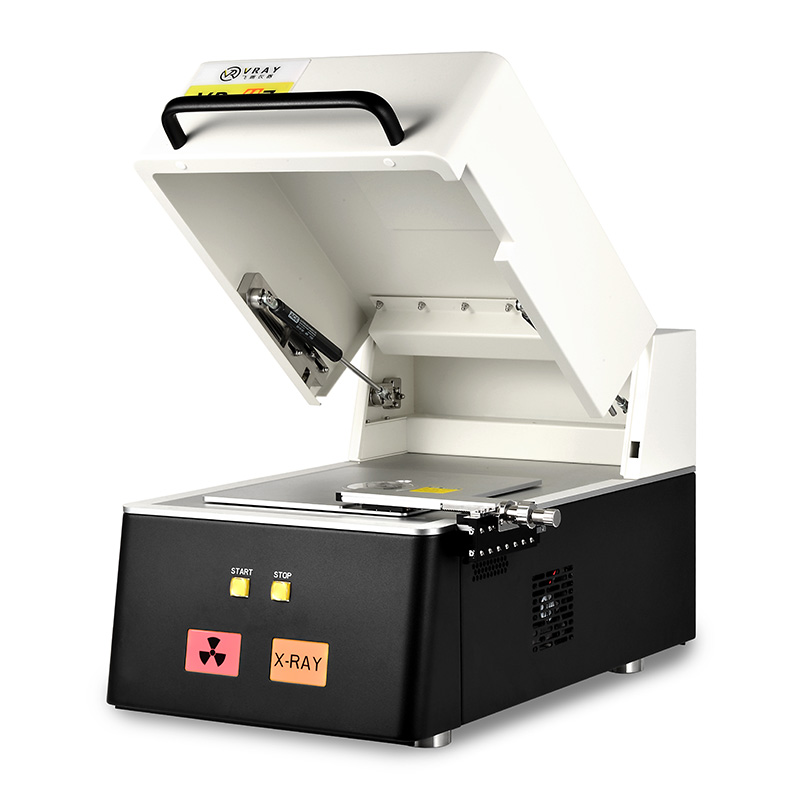

As our flagship desktop XRF analyzer, the VR-T7 (Price: $20,000 - $22,000) is the ideal choice for those seeking extreme precision. It's equipped with a high-sensitivity SDD detector, offering an unparalleled test accuracy of up to 0.01% for 9999 gold, ensuring unmatched reliability. Its 50W micro-focused beryllium window X-ray tube, φ1.5mm collimator, and 50x50mm manual XY sample platform, combined with a 5-million-pixel high-resolution CMOS camera (40x-160x magnification), make it exceptional for micro-area analysis and complex sample testing. The VR-T7 is the perfect tool for jewelers, precious metal recyclers, and quality control laboratories requiring in-depth, precise analysis.

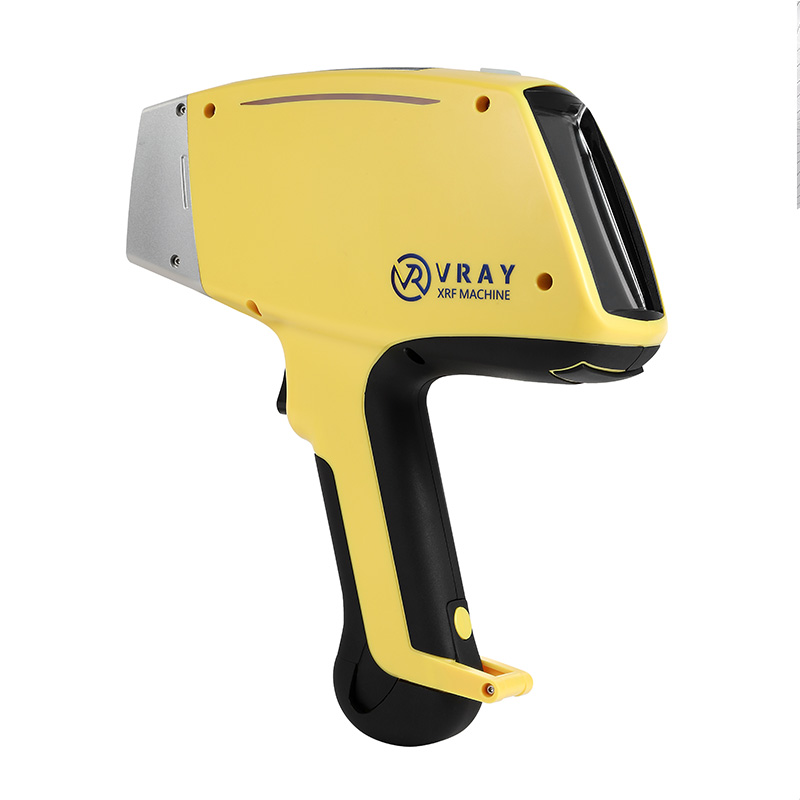

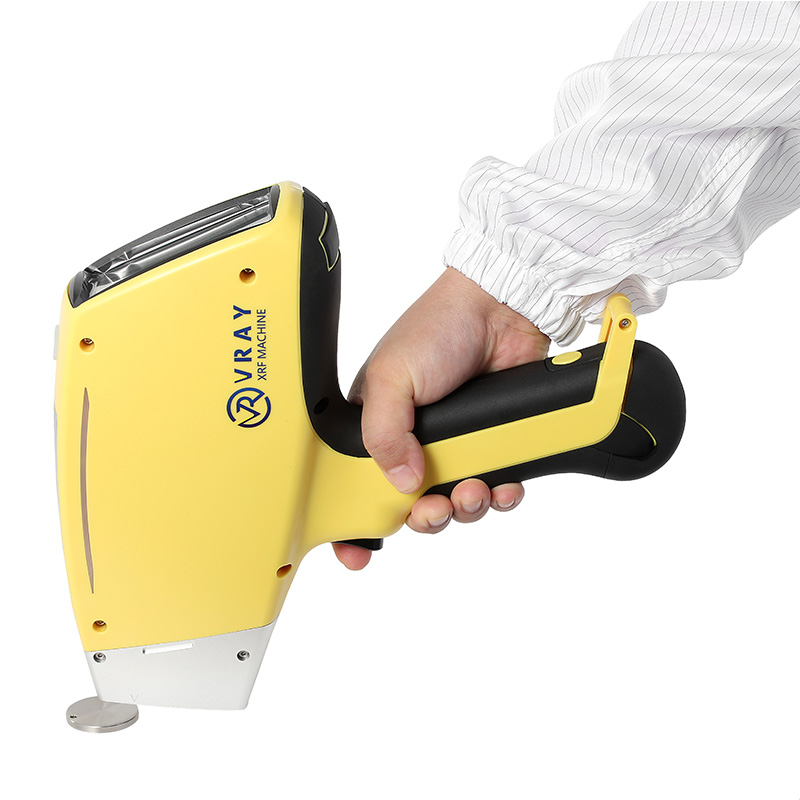

For users who need fast, accurate testing on-site, the VR-H5 (Price: $15,000 - $18,000) is our premier handheld solution. Its lightweight design at just 1.6Kg (with battery) and robust construction make it a true handheld gold tester. Featuring a USA-customized Si-Pin detector, it achieves an impressive 0.03% accuracy for 9999 gold and delivers results in just 30 seconds. The built-in intelligent battery system provides about 8 hours of work time, and it supports USB or Bluetooth data transmission, making it the best handheld XRF analyzer for mobile purchasing, pawn shops, and outdoor operations.

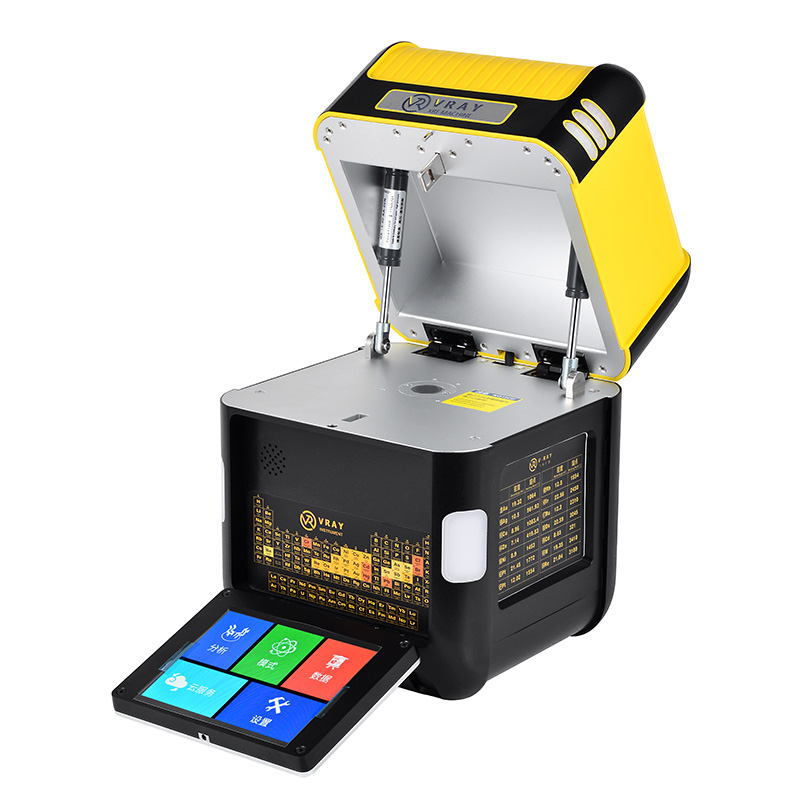

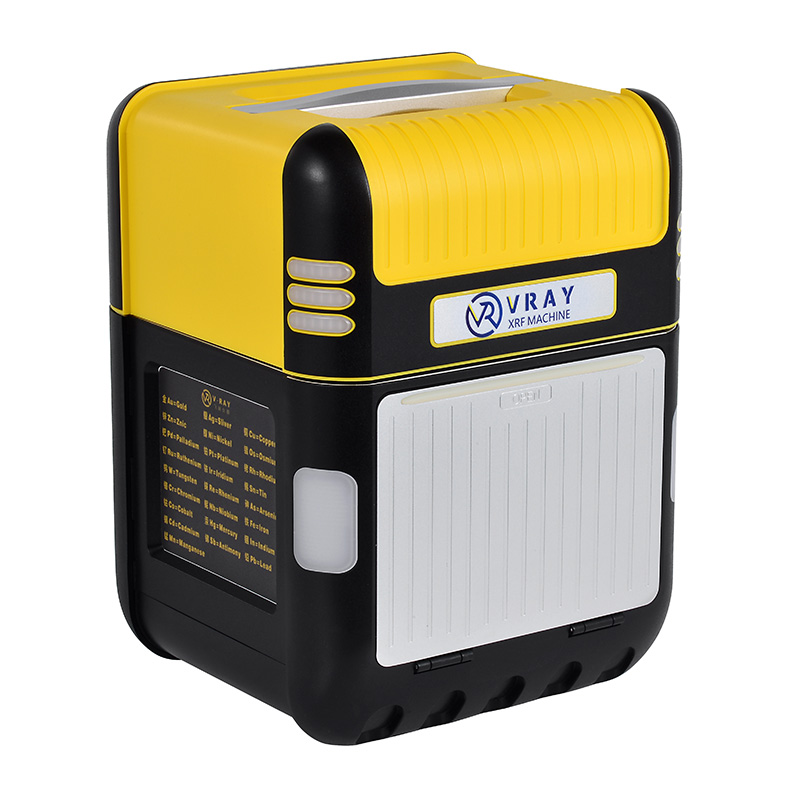

The VR-M5 (Price: $15,000 - $18,000) strikes an excellent balance between portability and powerful performance, bridging the gap between handheld and desktop units. This portable gold tester, weighing 4.1Kg, is equipped with a customized USA Si-Pin detector, offering a solid 0.05% accuracy for 9999 gold. Its 5.7-inch retractable color touchscreen and built-in 5-million-pixel high-definition camera significantly enhance operational convenience and sample observation capabilities. The VR-M5 is an ideal choice for users who require frequent mobility but also desire greater stability and screen visibility, making it widely applicable for jewelry stores, factory quality control, and rapid inspections.
Model | VR-T7 |
Type | Desktop XRF Analyzer |
Price | 20000$-22000$ |
Machine size | 330 x 580 x 360mm |
Chamber size | 320 x 480 x 130mm |
N/G Weight | 40Kg/60KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | High sensitivity SDD detector |
Test accuracy | 0.01% for 9999 gold |
X-ray tube | 50W (50 kV, 1mA) micro-focused beryllium window |
Collimator | ϕ1.5mm |
Manual sample XY platform | Moving range：50x50 mm |
Safety protection | Have radiation report.Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of |
Camera | High resolution CMOS color camera, 5 million pixels |
Magnification | 40x-160x |
Rated power | 100W |
Temperature | 10℃～35℃ |
Model | VR-H5 |
Type | Handheld XRF Analyzer |
Price | 15000$-18000$ |
Machine size | 254 x 79 x 280mm |
Chamber size | 500 x 400 x 200mm |
N/G Weight | 1.6Kg（with battery）/ 7.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.03% for 9999 gold |
Excitation source | Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional) |
Sreen | 4.3" industrial resistive touch screen |
Memory | 32GB |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Power supply system | Intelligent battery with MSBUS bus, complies with air dangerous goods transport regulations, one battery can work for about 8 hours |
Data transmission | USB or bluetooth |
Rated power | 100W |
Temperature | -20℃～50℃ |
Model | VR-M5 |
Type | Portable XRF Analyzer |
Price | 15000$-18000$ |
Machine size | 206 x 200 x 278 mm |
Chamber size | 500 x 400 x 400mm |
N/G Weight | 4.1Kg/11.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.05% for 9999 gold |
Memory | 32GB |
Sreen | 5.7" retractable color touch screen |
Camera | Built-in 5 million high-definition camera |
Safety protection | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Data transmission | USB or bluetooth |
Humidity | 40%-70%（Noncondensing） |
Temperature | -20℃～50℃ |
Choosing the best XRF analyzer requires careful consideration from a technical and operational perspective. Here are four expert recommendations to guide your purchase:
First, precisely identify what you'll be testing (e.g., gold purity, specific alloys, unknown metals) and the required accuracy. For high-purity gold (like 9999), an SDD detector with 0.01% accuracy (like VRAY's VR-T7 or VR-S7) is crucial. Simpler needs might suit a Si-Pin detector. Your application directly dictates the necessary analytical power and thus, the suitable XRF machine.
Decide if you need a handheld XRF analyzer (like VRAY's VR-H5 or VR-M5) for fieldwork and on-site testing, prioritizing lightness and battery life, or a desktop XRF analyzer (VR-T7, VR-S7) for laboratory stability, larger samples, and often higher precision. Portability impacts design, features, and ultimately, the XRF analyzer price.
A powerful XRF analyzer is only as good as its software. Look for intuitive interfaces, easy data interpretation, and robust reporting features. Integrated computers and touchscreens (common in VRAY's desktop models) enhance usability and workflow efficiency. Good software ensures you can maximize the instrument's capabilities without extensive training.
Even the best XRF equipment requires support. Verify the manufacturer's reputation for technical assistance, calibration services, and warranty. A reliable supplier (like VRAY with 17 years of experience) offering professional engineer support ensures long-term performance and minimizes downtime, protecting your investment in your XRF spectrometer.
What did our happy clients say?
Choosing VRAY's VR-T7 desktop XRF analyzer was the best decision for our lab. Its 0.01% accuracy for 9999 gold is unmatched, giving us ultimate confidence in our precious metal assays. The high-sensitivity SDD detector is truly top-tier. We strongly recommend this XRF machine for any high-precision work!
The VR-H5 handheld gold tester from VRAY is an absolute powerhouse. Weighing just 1.6kg, it's incredibly portable, yet delivers 0.03% accuracy in 30 seconds for all our on-site checks. The 8-hour battery life is fantastic. For anyone needing a portable XRF analyzer, we highly recommend the VR-H5.
VRAY’s VR-M5 portable gold tester perfectly balances performance and mobility. Its 0.05% accuracy with a retractable touchscreen makes field analysis so much easier. The built-in 5-million-pixel camera is a huge plus for documentation. For a versatile XRF analyzer, we definitely recommend the VR-M5.

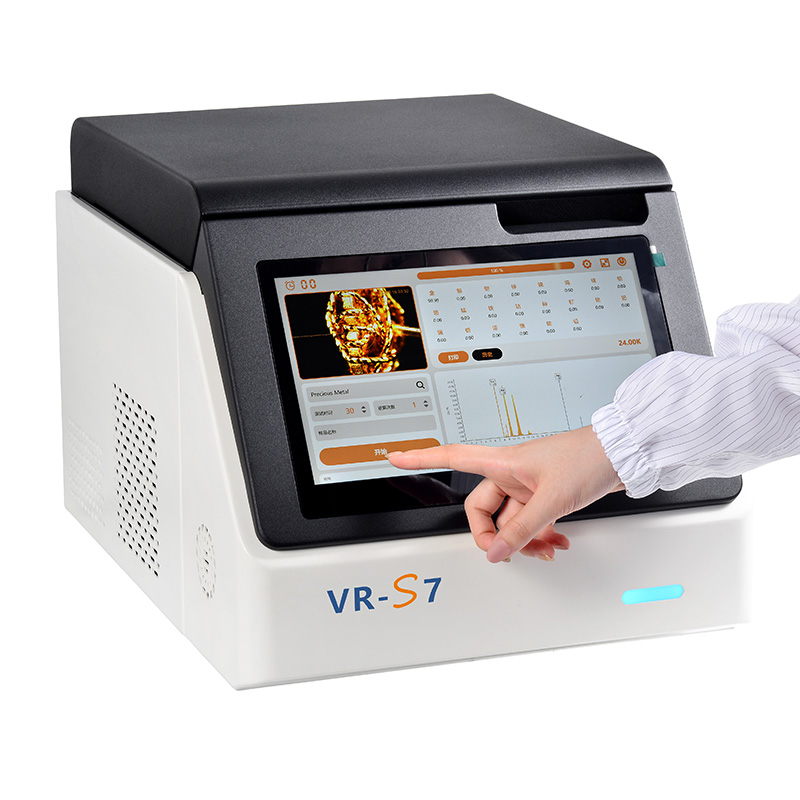

We were looking for the best XRF analyzer that offered both precision and value. VRAY’s VR-S7 desktop XRF spectrometer exceeded expectations. Its 0.01% accuracy and integrated i5 computer streamline our workflow. This precious metal analyzer is a testament to VRAY’s advanced XRF technology. Strongly recommended!
