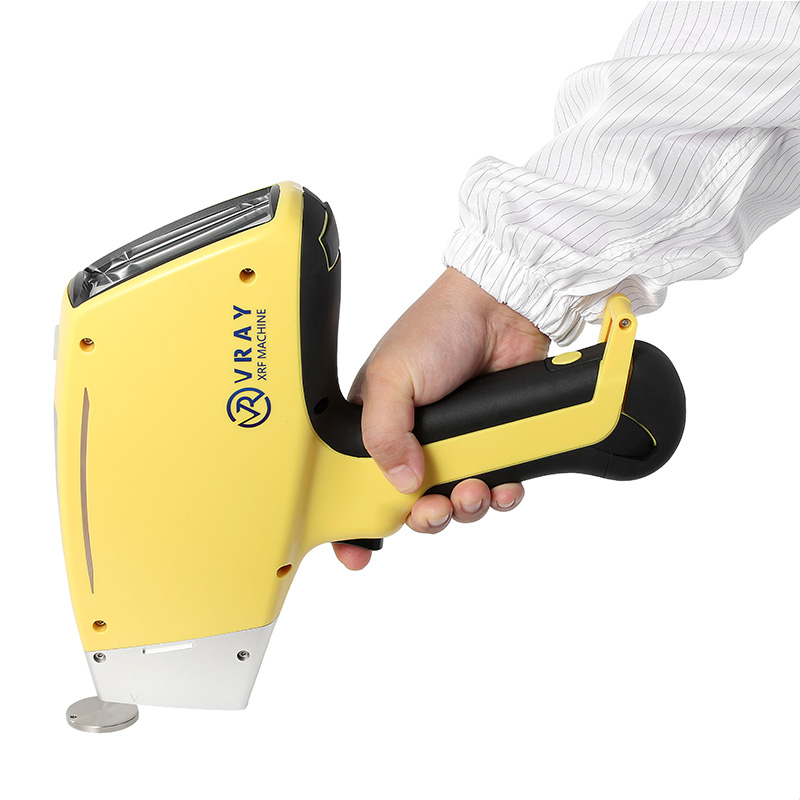

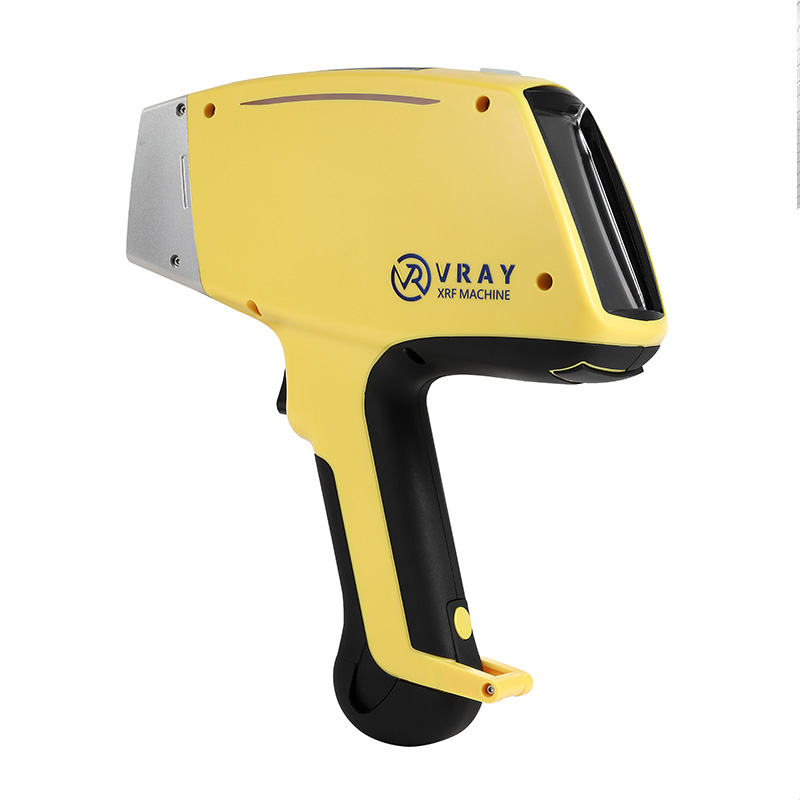

VRAY offers advanced Handheld XRF Analyzer solutions, exemplified by our VR-H5 Handheld Gold Tester (priced at $15,000-$18,000). This highly portable device weighs only 1.6Kg (with battery), making on-site analysis effortless. It delivers precise results with 0.05% accuracy for 9999 gold in just 30 seconds, capable of testing solid, liquid, and powder samples.
At its core, the VR-H5 features a customized USA Si-Pin detector and an excitation source up to 50KV/200μA with adjustable tube pressure/flow (Ag target standard, Au/W/Rh optional). It boasts a 4.3" industrial resistive touch screen and 32GB memory. An intelligent battery system provides ~8 hours of operation and complies with air transport regulations. Data can be transmitted via USB or Bluetooth. Equipped with a dedicated T-shaped radiator, it ensures efficient heat dissipation without cooling waits, operating reliably across -20℃ to 50℃.
The portable, non-destructive Handheld XRF Analyzer operates on X-ray Fluorescence (XRF) principles. It excites samples with X-rays, analyzing emitted secondary X-rays to determine elemental composition and purity.
Handheld XRF Analyzers empower jewelers, recyclers, manufacturers, and geologists. They enable on-site material identification, rapid quality control, accurate valuation, and fraud prevention, supporting immediate decision-making and material authenticity.
Weighing just 1.6Kg (with battery), these devices offer exceptional portability. They boast 0.05% accuracy for 9999 gold and deliver results in 30 seconds. Capable of testing solids, liquids, and powders, they feature Si-Pin detectors, powerful 50KV/200μA excitation sources, 8-hour battery life, and operate robustly across -20℃ to 50℃ environments.
Choosing a Handheld XRF Gold Analyzer, like VRAY's VR-H5, offers unparalleled advantages. Its core benefit is exceptional portability (e.g., 1.6Kg with battery), enabling on-site, non-destructive analysis anywhere—from retail to remote sites.
The handheld design provides immense convenience: it lets you test any sample size or shape directly, unlike chamber devices. This flexibility is crucial for large or valuable items. It delivers immediate, accurate results (e.g., 0.05% accuracy in 30 seconds), enabling real-time decision-making for buying, selling, or quality control. This efficiency streamlines workflows, prevents fraud instantly, and builds customer trust through transparent, on-the-spot verification. Its user-friendly interface further ensures ease of use.
Operating the VRAY Handheld XRF Analyzer is simple: Power on, calibrate, select mode, align sample, and press 'start'. Results appear in 3-30 seconds, ready for printing or saving.
For safety, preheat and calibrate daily. Never aim the low-dose X-ray probe at humans or animals. Minimize shaking during handheld use. Store in a cool, dry place and avoid flammable/explosive environments. Follow the manual and avoid private parameter modifications.
To prevent issues and ensure longevity, do not modify software/calibration data, or touch the detector window. Clean samples before testing. Avoid long continuous detection (to prevent overheating) and operating with low battery levels or an unstable power supply. Regular charging and proper storage practices are crucial for its longevity.
VRAY's VR-H5 Handheld Gold Tester is competitively priced at $15,000-$18,000.
Price Influencing Factors: Cost varies by detector type, accuracy, X-ray tube power, portability, and integrated features like screen, memory, cooling, and battery. Application-specific calibrations also impact pricing.
Detection Range: Precious metals & common alloys.
Accuracy: Lower % error (e.g., ±0.01-0.05%) implies higher sensitivity.
Test Speed: 20-60s range; faster for high-frequency use.
X-ray Tube Power: Higher power (4W-50W) for penetration/speed.
Safety: Shielding, interlocked doors, radiation license.
Brand & After-sales: Local support, training, warranty (1 year).
Portability (for Handhelds): Instrument volume/weight (e.g., 1.6Kg for VR-H5) for ease of carrying.
For detailed pricing, please consult VRAY's expert team.
A Handheld XRF Analyzer is a portable, non-destructive device quantifying elemental composition using X-ray Fluorescence (XRF) technology. VRAY's models, like the VR-H5, can detect 74 kinds of precious metal elements, including Au, Ag, Cu, Pd, and Rh, within a K-U range. They are ideal for testing karat gold, platinum jewelry, coins, and alloys, suitable for solid, liquid, and powder samples.
Our Handheld XRF Analyzers, featuring a Customized Si-Pin detector from USA and advanced calibration algorithms, ensure high accuracy and repeatable results. The VR-H5, for instance, boasts 0.05% accuracy for 9999 gold, with typical accuracy within ±0.01% to ±0.1% depending on configuration. Regular calibration with provided standards ensures long-term stability and reliability for daily use.
Answer: VRAY's Handheld XRF Analyzers are designed for rapid analysis. They typically provide preliminary analysis data in about 3 seconds, with complete and accurate elemental composition results displayed within a quick 20 to 30 seconds. This fast scanning allows for immediate decision-making, even for bulk compositions.
Absolutely. Our analyzers feature a user-friendly interface with graphical guidance and one-button operation, making them very easy to use even for non-technical staff, usually requiring only 30 minutes of basic training. While flat contact yields best results, the device can effectively handle uneven surfaces and test various forms like solids, liquids, and powders.
Yes. Our analyzers excel in distinguishing between pure gold, various gold alloys (e.g., 18K, 22K), and plated materials with high sensitivity. The system automatically calculates and displays K-values (e.g., "Au 75% = 18K") and will alert you to abnormal structures, helping identify fake or plated items. The multi-functional sample holder also assists in testing small items like rings or earrings.
Yes, our devices are designed with multiple safety features to ensure operator safety. They include robust X-ray shielding, an automatic X-ray shutdown system when not in use, and meet international safety standards. When used as instructed, radiation is fully contained, posing no risk. For frequent testing of small samples, using a bench-top stand is recommended to minimize scattered radiation.
VRAY's Handheld XRF Analyzers offer comprehensive data management. All test results are automatically saved locally (e.g., 32GB memory) and can be easily exported via USB or Bluetooth. Reports can be generated in PDF or Excel formats, printable via built-in or external printers, and customizable with your company logo, customer name, and sample details.
Our Handheld XRF Analyzers feature an intelligent battery system providing long operational life, typically 5 to 8 hours of continuous use per charge. They are equipped with a dedicated T-shaped radiator and an intelligent cooling system to prevent overheating, ensuring stable performance even during extended operation across a wide temperature range (-20℃ to 50℃).
