Precious Metal Analyzer

A Precious Metal Analyzer (typically utilizing X-ray Fluorescence or XRF technology) operates on a principle of atomic excitation and emission. Here's a breakdown of how it works:

• X-ray Generation: Inside the analyzer, a powerful X-ray tube (e.g., 50W micro-focused tungsten or beryllium window) generates a primary beam of high-energy X-rays.

• Sample Excitation: This focused primary X-ray beam is directed onto the jewelry or metal sample, precisely targeted by a collimator. When the X-rays hit the atoms in the sample, they knock out inner-shell electrons.

• Fluorescence Emission: To regain stability, outer-shell electrons fill the vacant inner-shell positions. This transition causes the atoms to emit secondary, fluorescent X-rays at specific energy levels. Each element has a unique "fingerprint" of X-ray energies.

• Detection & Measurement: A high-performance detector (such as a Customized Si-Pin or high-sensitivity SDD detector) captures these emitted fluorescent X-rays, measuring both their distinct energies and their intensity.

• Data Processing & Analysis: An integrated industrial computer processes this raw data. Sophisticated software analyzes the energies to identify the specific elements present and calculates their concentrations based on the intensity of their emitted X-rays.

• Result Display: The final elemental composition and purity (e.g., gold karat, platinum percentage) are then displayed on the analyzer's screen. This entire process is rapid, non-destructive, and highly accurate, providing real-time results for precious metal valuation and authentication.

Precious Metal Analyzers are indispensable tools across a wide range of industries and professional settings, providing rapid, accurate, and non-destructive elemental analysis. Key applications include:

1. Precious Metal Purity Testing: Accurately determine the exact karat (e.g., for gold) and fineness of precious metals such as gold, silver, platinum, and palladium, whether in solid, liquid, or powder form.

2. Jewelry Appraisal and Valuation: Provide reliable data for valuing new, antique, or second-hand jewelry pieces based on their true metal composition.

3. Quality Control: Essential for jewelry manufacturers and refiners to verify the quality and consistency of materials throughout the production process and for incoming/outgoing goods.

4. Fraud Prevention & Authentication: Crucial for identifying counterfeit items, detecting under-karated gold, or verifying the authenticity of precious metal articles, protecting businesses and consumers alike.

5. Scrap Metal Sorting & Recycling: Quickly analyze the composition of scrap jewelry, dental alloys, or other precious metal waste for efficient sorting, recovery, and recycling.

6. Pawn Shops & Retail Jewelers: Enable quick, on-the-spot verification of precious metal items for buying, selling, or collateral assessment, enhancing customer trust.

7. Mining & Exploration: Used for preliminary analysis of ore samples containing precious metals.

8. Customs & Border Control: Aid in verifying the declared metal content of imported and exported goods.

Using a Precious Metal Analyzer is a streamlined process designed for efficiency and safety:

1. Power On & Software Launch: Turn on the analyzer and launch its dedicated analysis software.

2. Preheating & Daily Calibration: Allow the instrument to preheat for 10 minutes. For the first use each day, it's crucial to strictly follow instructions and calibrate the analyzer using a certified calibration sample.

3. Sample Placement & Test Initiation: Carefully place the jewelry or metal sample in the designated detection area. Crucially, ensure the protective door is securely closed to prevent X-ray leakage, then press the "start" button.

4. Result Acquisition: The analyzer typically provides preliminary analysis results within 3 seconds, with complete, accurate results available in about 30 seconds.

5. Reporting: Once the test is complete, you can print the report (A4 or via Bluetooth thermal printer) or save it digitally for record-keeping.

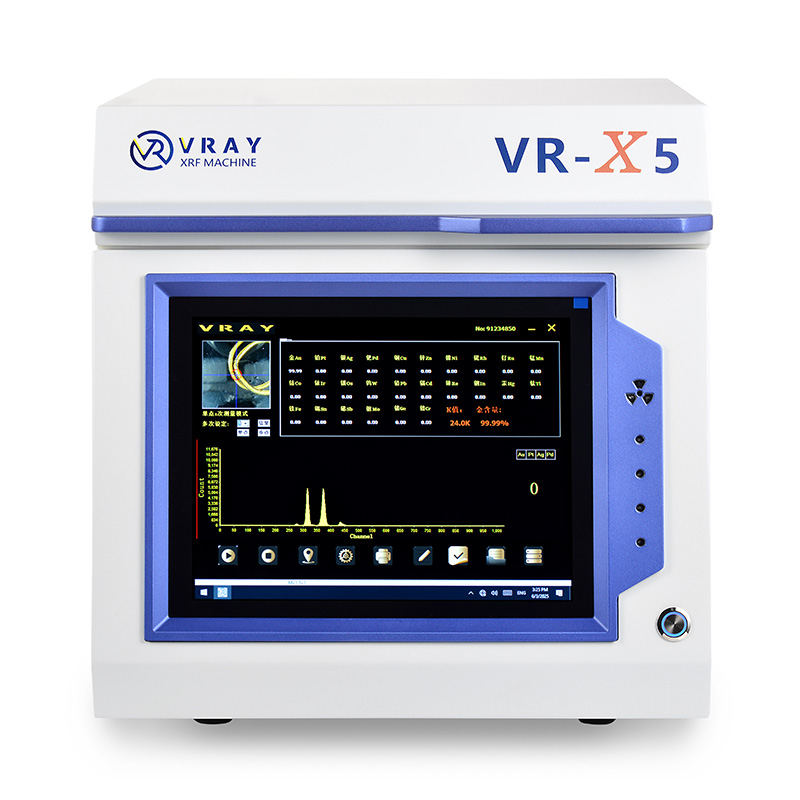

Yes, Precious Metal Analyzers, particularly advanced XRF models like VRAY's, are highly accurate. VRAY models demonstrate impressive precision, with top-tier units like the VR-T7 achieving 0.01% accuracy for 9999 gold, while other models like VR-S6, VR-H5, VR-M5, and VR-X5 offer 0.03% or 0.05% accuracy for 9999 gold.

This high level of accuracy is meticulously ensured through several key factors:

• Advanced XRF Technology: The fundamental principle of XRF, which identifies elements by their unique X-ray "fingerprints," is inherently precise.

• High-Quality Components: The use of sophisticated components like powerful 50W micro-focused X-ray tubes, precise collimators, and sensitive detectors (Customized Si-Pin and high-sensitivity SDD) directly contributes to superior analytical performance.

• Rigorous Calibration: Daily instrument calibration using certified samples is a critical procedural step that maintains the analyzer's accuracy over time by correcting for any minor drifts.

• Stable Operating Environment: Maintaining a dry, clean, and well-ventilated environment within specified temperature and humidity ranges (e.g., 10℃～35℃ for desktops, -20℃～50℃ for portables) prevents component malfunction or data distortion caused by environmental stress.

• Stable Power Supply: Recommending the use of a regulated power supply or UPS protects delicate internal components from voltage fluctuations, which could otherwise impair performance and accuracy.

• Strict Operational Protocols: Adhering to manufacturer guidelines and avoiding unauthorized software or parameter modifications prevents data corruption and ensures consistent, reliable results.
