Below is a video overview of How to Use An X-Ray Gun For Metal Analyzer by VRAY, watch it carefully to learn more!
VRAY offers a robust selection of X-Ray Guns for Metal Analyzer solutions, leveraging advanced XRF Technology for rapid, non-destructive elemental analysis across various metals and alloys. These portable instruments are ideal for on-site material identification, quality control, and sorting in diverse industries.

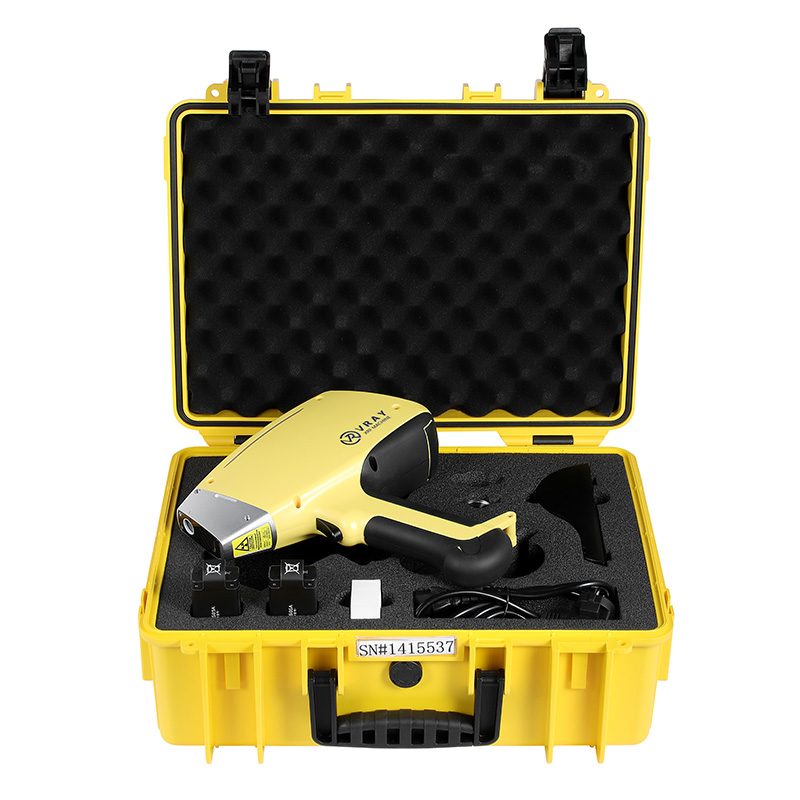

Features: This is VRAY's flagship X-Ray Gun for Metal Analyzer, designed for ultimate portability. Weighing a mere 1.6kg (with battery), it's incredibly lightweight and ergonomic. It features a 4.3" industrial resistive touch screen for intuitive operation and 32GB of memory for data storage. Its intelligent battery management system provides approximately 8 hours of continuous use. The VR-H5 is equipped with active radiation protection and a gravity sensing system that automatically shuts down upon falling for enhanced safety.
Technical Solution: The VR-H5 utilizes a customized Si-Pin detector from USA and an excitation source up to 50KV/200μA (adjustable) with a tungsten target. This configuration allows for swift and accurate elemental analysis (from Mg to U), making it highly effective for precise gold testing, identifying precious metals like platinum and palladium, and general metal alloy analysis. Its optimized algorithm enhances spectral resolution, achieving lower detection limits.
Features: The VR-M5 balances portability with enhanced features, weighing 4.1kg. It boasts a larger 5.7" foldable color touch screen and a built-in 5-megapixel HD camera for detailed sample visualization and documentation. Like the VR-H5, it offers versatile data output options (USB, Bluetooth, WIFI) and can be connected to the internet for remote settings and maintenance.
Technical Solution: This model also employs an imported high-performance Si-PIN detector and a powerful X-ray tube (50KV/200μA, 4W max excitation power) with a tungsten target, capable of analyzing elements from Mg to U. The larger screen and integrated camera enhance its utility for various applications requiring more visual detail during metal analysis.
X-ray Fluorescence (XRF) Technology: All VRAY X-Ray Guns operate on the principle of XRF, providing non-destructive elemental analysis by exciting atoms with primary X-rays and analyzing the unique fluorescent X-rays emitted in return.
High-Performance Detectors: VRAY primarily uses Si-Pin detectors (e.g., VR-H5, VR-M5) optimized for high resolution, speed, and accuracy in detecting various elements from Magnesium to Uranium. Some high-end precious metal specific models may feature SDD (Silicon Drift Detector) technology for even superior resolution.
Robust X-ray Tubes: Equipped with durable X-ray tubes (typically up to 50KV/200μA) with adjustable power and tungsten targets, ensuring efficient excitation of elements for comprehensive analysis.
Advanced Algorithms: VRAY's software incorporates advanced algorithms, such as the Super-FP algorithm and correction curve methods, which improve measurement speed, accuracy, and consistency across different sample matrices.
User-Friendly Interfaces: All X-Ray Guns feature intuitive, often touchscreen-based, interfaces that simplify operation, requiring minimal user training.
Comprehensive Data Management: Devices include ample internal storage, with options for data export via USB, Bluetooth, or Wi-Fi, allowing for seamless integration into existing data systems and customized report generation.
Safety Features: Built-in radiation protection (e.g., automatic cut-off), safety interlocks, and radiation indicator lights ensure operator safety during use.
VRAY's X-Ray Guns for Metal Analyzer are engineered for precision, portability, and user convenience, making them ideal solutions for a wide range of metal analysis and material verification tasks.
X-Ray Guns for Metal Analyzer are incredibly versatile handheld XRF analyzers, delivering rapid, non-destructive elemental analysis directly on-site. Their portability and speed make them invaluable across numerous applications:
Positive Material Identification (PMI): Essential in industries like oil & gas, power generation, and manufacturing for verifying alloy grades in critical components, preventing costly material mix-ups, and ensuring safety and regulatory compliance.
Scrap Metal Sorting & Recycling: Rapidly identifies and sorts various metal alloys (e.g., stainless steel, aluminum, copper, brass) from mixed scrap, maximizing recovery value and ensuring accurate material segregation for recycling.
Mining & Geological Exploration: Geologists and prospectors use these portable XRF analyzers for quick, on-site analysis of ore, soil, and rock samples. This aids in identifying mineral deposits, grading ore bodies, and making immediate decisions about exploration or excavation.
Manufacturing Quality Control (QC): Used throughout the manufacturing process, from incoming raw material inspection to final product verification. Ensures correct alloy composition, identifies contaminants, and verifies coatings, maintaining product integrity and quality standards.
Forensics & Art Authentication: Law enforcement uses X-Ray Guns for rapid analysis of metal evidence at crime scenes. Art conservators and authenticators employ them to non-destructively determine the elemental composition of metal artifacts, sculptures, and historical objects.
Environmental Compliance & Site Remediation: Rapidly screens soil and water samples for heavy metal contamination on-site. This helps delineate contaminated areas, monitor remediation efforts, and ensure compliance with environmental regulations.
X-Ray Guns for Metal Analyzer offer numerous benefits making them indispensable tools.
Non-Destructive Testing: They analyze metal composition without damaging the sample, crucial for valuable items, finished products, or historical artifacts.
Speed and Efficiency: Provide instant, real-time results in seconds, enabling rapid material identification, sorting, and quality control on-site. This significantly boosts productivity.
Portability and On-Site Analysis: Being handheld and lightweight (e.g., VRAY VR-H5 at 1.6kg), they allow analysis directly at the point of need (e.g., scrap yards, mining sites, manufacturing lines), eliminating the need to transport samples to a lab.
High Accuracy and Precision: Modern XRF guns deliver laboratory-quality results for elemental identification and quantification, ensuring reliable data for critical decisions.
User-Friendly Operation: Designed with intuitive interfaces, they require minimal training, making them accessible to a wide range of users for efficient operation.
Versatility: Capable of analyzing a broad spectrum of elements from Magnesium to Uranium, identifying various alloys, and verifying material grades across diverse industries.
Operating an X-Ray Gun for Metal Analyzer is a straightforward process designed for efficiency and safety. Here's a concise guide:
Preparation: Power on the XRF gun and allow it to complete its self-diagnostics. Ensure batteries are charged (e.g., VRAY VR-H5 offers 8-hour life). Gently clean the sample surface to remove any dirt or residue that could affect accuracy.
Safety First: Always adhere strictly to safety protocols. Point the analysis window away from yourself and others. Ensure the sample is properly positioned before initiating any test to prevent X-ray exposure.
Sample Placement: Firmly place the metal sample directly against the XRF gun's measurement window, ensuring full contact. For irregularly shaped items, find a flat area that covers the window.
Select Test Mode: Use the touchscreen (e.g., VR-H5's 4.3" screen) to select the appropriate analysis mode, such as "Alloy ID," "Precious Metals," or a specific material type.
Initiate Analysis: Pull the trigger or press the "Analyze" button. Hold the XRF gun steady against the sample until the test completes (typically within 30 seconds for rapid results).
Interpret Results: The elemental composition and alloy identification will instantly display on the screen. Review the data, save it to the internal memory (e.g., 32GB on VR-H5), and export via USB or Bluetooth if needed.
