Model | VR-M5 |
Type | Portable XRF Spectrometer |
Price | 15000$-18000$ |
Machine size | 206 x 200 x 278 mm |
Chamber size | 500 x 400 x 400mm |
N/G Weight | 4.1Kg/11.1KG |
Test time | 30s |
Test range | Solid/liquid/ powder |
Detector type | Customized Si-Pin detector from USA |
Test accuracy | 0.05% for 9999 gold |
Memory | 32GB |
Sreen | 5.7" retractable color touch screen |
Camera | Built-in 5 million high-definition camera |
Safety protection | Equipped with a dedicated T-shaped radiator to dissipate the heat； no need to wait for cooling of |
Data transmission | USB or bluetooth |
Humidity | 40%-70%（Noncondensing） |
Temperature | -20℃～50℃ |
Below is a detailed overview of VRAY's Portable XRF Spectrometer (VR-M5 model), covering its features, applications, technical aspects, and support.
The VRAY Portable XRF Spectrometer VR-M5 is a cutting-edge, handheld elemental analysis solution designed for rapid, non-destructive testing directly in the field. Weighing just 4.1Kg (with battery), it offers unparalleled mobility. It boasts a quick 30-second test time and impressive 0.05% accuracy for 9999 gold, making it ideal for immediate, precise material identification across various industries. Its robust design allows operation in diverse temperatures from -20℃ to 50℃ and humidity between 40%-70% (non-condensing). The VR-M5 is perfect for analyzing solid, liquid, and powder samples on-site, enhancing efficiency and reliability. Its 5.7" retractable color touch screen and built-in 5 million high-definition camera provide intuitive operation and precise sample targeting.
The VR-M5 Portable XRF Spectrometer integrates powerful hardware components for robust performance:
Physical Attributes: Lightweight at 4.1Kg (with battery) with compact dimensions of 206 x 200 x 278 mm.
Detection System: Equipped with a high-quality Customized Si-Pin detector from USA for sensitive and accurate elemental detection.
User Interface: Features a large 5.7" retractable color touch screen for intuitive operation and clear data display.
Visual Guidance: Includes a built-in 5 million high-definition camera for precise sample positioning and image capture.
Thermal Management: Incorporates a dedicated T-shaped radiator for efficient heat dissipation, eliminating the need to wait for cooling.
Memory & Connectivity: Comes with 32GB internal memory for extensive data storage, and supports USB or Bluetooth for seamless data transmission.
The versatility and portability of the VRAY Portable XRF Spectrometer VR-M5 make it an indispensable tool across numerous industries and applications:
Jewelry & Precious Metals: Rapidly authenticating gold (with 0.05% accuracy for 9999 gold), silver, platinum, and other alloys directly in retail stores, pawnshops, or during field appraisals.
Scrap Metal Recycling: Quick sorting and identification of various metal grades, including precious metals, to ensure accurate pricing and optimize material recovery.
Quality Control & Manufacturing: On-site verification of raw material composition and finished product quality in diverse manufacturing settings, from automotive to electronics.
Mining & Geology: Field analysis of geological samples (solid/liquid/powder) for mineral exploration, grade control, and processing optimization.
Environmental Screening: Rapid assessment of heavy metals in soil, water, or dust for environmental compliance and pollution monitoring.
Art & Archaeology: Non-destructive analysis of artifacts, artworks, and historical objects for material identification, authenticity verification, and conservation purposes.
Regulatory & Safety Compliance: Screening products for hazardous elements (e.g., RoHS/WEEE compliance) to meet international safety standards.
The VRAY Portable XRF Spectrometer VR-M5's high performance is underpinned by sophisticated core technologies:
X-ray Fluorescence (XRF) Principle: The fundamental non-destructive method where a sample, upon primary X-ray excitation, emits characteristic secondary X-rays. The precise energy and intensity of these X-rays allow for accurate elemental identification and quantification.
High-Performance Detector: At its heart is a Customized Si-Pin detector from USA, crucial for its high energy resolution and efficient detection of fluorescent X-rays. This technology directly contributes to its impressive 0.05% accuracy for 9999 gold.
Optimized X-ray Tube: Employs an efficient X-ray source that provides stable and sufficient excitation, enabling rapid 30-second tests across a wide range of sample matrices.
Advanced Thermal Management: The dedicated T-shaped radiator is a key safety and performance feature. It ensures the instrument maintains optimal operating temperature even during continuous use, preventing overheating and eliminating the need to wait for cooling periods.
Intuitive User Interface & Data Processing: A 5.7" retractable color touch screen combined with a powerful internal processor and 32GB memory provides a seamless, responsive user experience for efficient data acquisition, analysis, and storage. The built-in 5 million high-definition camera further aids in precise sample targeting.
Using the VRAY Portable XRF Spectrometer VR-M5 for elemental analysis is designed to be straightforward and efficient:
Power On & Warm-up: Turn on the device. For initial use or after a long period of inactivity, allow a brief warm-up time to ensure optimal detector stability.

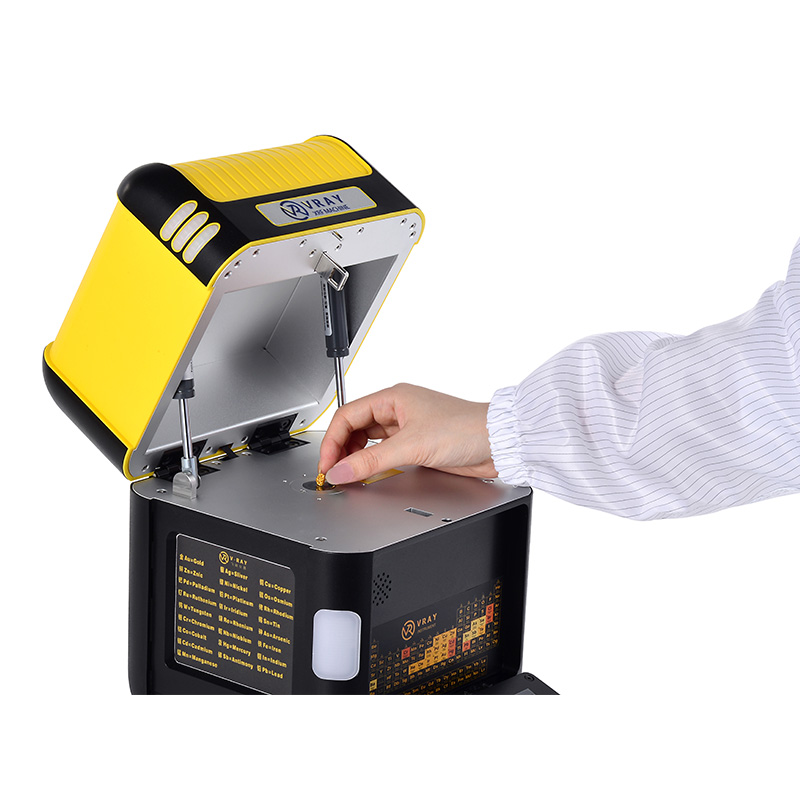

Sample Placement/Aiming: For larger items, simply aim the VR-M5's probe directly at the clean, flat surface of the material to be tested. For smaller items, you can utilize any optional accessories or a test stand for secure placement. The built-in 5 million high-definition camera assists in precisely targeting the test area.
Initiate Test: Select the appropriate test mode (e.g., alloy analysis, precious metals, RoHS) on the 5.7" retractable color touch screen and press the 'Test' button. The analysis typically completes within a swift 30 seconds.
View & Analyze Results: The elemental composition and concentration (e.g., karatage for gold, percentages for alloys) will be displayed instantly on the screen. The generous 32GB memory allows for extensive storage of test results.
Data Management: Test results can be saved internally or conveniently transferred to a computer or other devices via USB or Bluetooth for further reporting, archiving, or integration into your existing data systems.
The VRAY Portable XRF Spectrometer VR-M5 is typically priced in the range of $15,000 to $18,000 USD. This pricing reflects its advanced portable XRF technology, high accuracy, robust build quality specifically for field use, and integrated features such as a high-definition camera and an efficient cooling system.
When considering the investment in a Portable XRF Spectrometer like the VR-M5, evaluate the following key factors to ensure it meets your specific needs:
Portability & Weight: At 4.1Kg, the VR-M5 offers excellent portability. Assess if this weight and physical machine size (206 x 200 x 278 mm) are suitable for your typical fieldwork or mobile applications.
Accuracy & Performance: The 0.05% accuracy for 9999 gold and the presence of a Customized Si-Pin detector from USA indicate high precision. Verify that this level of analytical performance meets your specific requirements for elemental identification and quantification.
Test Speed: A rapid 30-second test time is highly efficient for quick on-site analysis and high-volume testing scenarios.
Environmental Suitability: Its wide operating temperature range (-20℃～50℃) and humidity tolerance (40%-70% non-condensing) make it highly suitable for diverse and challenging field conditions.
Sample Versatility: The ability to test solid, liquid, and powder samples offers significant versatility across different material types.
User Interface & Integrated Features: A 5.7" retractable color touch screen and a built-in 5 million high-definition camera enhance usability, precision, and data recording capabilities.
Data Management: USB and Bluetooth connectivity provide flexible options for data transfer, reporting, and archiving.
Safety & After-sales Support: Always confirm the device's X-ray safety certifications and the manufacturer's commitment to comprehensive technical support, warranty provisions, and maintenance services.
Operating an XRF spectrometer involves X-rays, so strict adherence to safety protocols is paramount. Always observe these critical reminders when using your VRAY Portable XRF Spectrometer VR-M5:
X-ray Radiation Safety: Never aim the probe at any human or animal. Ensure that no body parts or unauthorized personnel are within the X-ray beam path during testing. X-rays are emitted only when the test sequence is actively initiated.
Protective Measures: Always follow the operating manual's instructions regarding proper sample placement and trigger activation to prevent any accidental X-ray exposure. Be aware of any built-in interlocks or safety features designed to prevent exposure.
Detector Protection: The detector window is extremely fragile and highly sensitive. Under no circumstances should you touch it with fingers or any sharp objects, as this can cause irreversible and costly damage to the detector film.
Environmental Considerations: Avoid operating the device in environments containing flammable gases, excessive dust, or potentially explosive atmospheres. While the VR-M5 has a wide temperature tolerance, avoid extreme conditions beyond its specified range (-20℃～50℃).
Power & Stability: Use a stable and regulated power source or an Uninterruptible Power Supply (UPS) to prevent voltage fluctuations, which can damage internal components such as the X-ray tube and mainboard. Avoid frequently cycling power on/off or forcibly cutting power during operation.
Software & Calibration Integbnvrity: Do not modify software parameters or calibration data privately without manufacturer guidance. Always adhere to VRAY's guidelines and the operation manual to ensure data integrity and maintained device accuracy.
Physical Handling: Avoid subjecting the instrument to striking, dropping, or strong shaking. When not in active use, store the portable spectrometer securely in i ts custom-designed carrying case to protect sensitive internal components from physical shock and environmental factors.
Proper maintenance and accessible support are crucial for ensuring the long-term performance, reliability, and accuracy of your VRAY Portable XRF Spectrometer VR-M5.
Regular Cleaning: Daily wipe the outer casing of the spectrometer with a clean, soft, lint-free cloth to prevent dust accumulation. Before each use, visually inspect and clean the test window to ensure it is free of any foreign objects or contamination. Regularly clean the internal cooling fans and vents to prevent blockages and ensure efficient heat dissipation by the T-shaped radiator.
Environmental Control: Store and operate the device within its specified temperature range (-20℃～50℃) and humidity range (40%-70% non-condensing). Always ensure the working area is dry, clean, and well-ventilated.
Power Management: Always use a stable power source or a voltage stabilizer/UPS to protect sensitive electronic components from unstable voltage. Avoid prolonged continuous high-load use; allow for appropriate cooling intervals for the instrument.
Proper Storage: When the portable spectrometer is not in active use, store it securely in its custom-designed, shock-proof carrying case to protect it from physical impact and environmental factors.
VRAY is committed to providing comprehensive support for your Portable XRF Spectrometer VR-M5:
Routine Support: This includes providing detailed Installation Instructions for easy setup, offering regular Software Updates to enhance functionality, providing comprehensive Technical Training for users, and backing the product with a Hardware Warranty.
Remote Guidance: For common software issues (e.g., software malfunction, updates/upgrades failing), VRAY engineers can provide remote support at any time to diagnose and efficiently resolve software-related problems.
Emergency Hardware Solutions: For critical hardware problems (e.g., X-ray tube damage, detector failure, high-voltage module issues, protective door sensor failure), VRAY offers two primary solutions:
Mail Accessories with Video Tutorials: We can dispatch necessary replacement accessories to the customer, accompanied by detailed video tutorials, to facilitate customer-guided self-repair where feasible.
On-site Engineer Dispatch: For more complex or critical malfunctions, VRAY can dispatch qualified engineers directly to the customer's site to diagnose and resolve the problem in person.
